A commercial door that slams, stops short of latching, or drifts open is more than an annoyance. It can affect security, accessibility, fire-door performance, and the daily experience of everyone using the building. These door closer adjustment instructions explain how to make careful, limited changes to a typical hydraulic closer while recognizing when a service call is the safer choice.
Most closers have small adjustment valves that control hydraulic fluid flow. A minor turn can make a noticeable difference, so this is not a place for force or guesswork. The goal is a door that opens with reasonable effort, closes smoothly, and latches fully without slamming.
Before You Adjust the Door Closer
Start by identifying the actual problem. Watch the door through several complete open-and-close cycles. Does it move too fast for the entire closing swing? Does it travel normally and then slam during the last few inches? Does it close quietly but fail to latch? Each symptom points to a different setting or, in some cases, a problem that adjustment alone cannot solve.
Make sure the door, frame, hinges, weatherstripping, latch, and strike are in good condition first. A closer cannot compensate for a sagging door, loose hinge screws, a damaged frame, or a latch that does not align with the strike. If the door rubs the frame, binds at the threshold, or has visible hinge wear, correct that issue before touching the closer.
For fire-rated doors, exit doors, and doors serving schools, healthcare facilities, assisted living properties, and other high-traffic buildings, use extra caution. These openings often have code and life-safety requirements. A door that must positively latch should never be adjusted so slowly that it remains partly open, especially when building pressure, wind, or HVAC air movement is present.
You will usually need a small flat-head screwdriver or hex key, depending on the closer. Keep the closer manufacturer’s instructions available if possible, because valve locations and labels vary by model.
Understand the Closer Valves
A standard surface-mounted hydraulic door closer commonly has two primary adjustment valves: sweep speed and latch speed. Some models also include backcheck, delayed action, and spring power adjustment.
Sweep speed controls the main closing range, usually from the fully open position down to roughly the last 10 to 15 degrees before the door closes. If the door races across most of its travel, sweep speed is likely too fast.
Latch speed controls the final few inches of closing travel. This setting provides enough closing force to engage the latch without causing a loud bang. A door that moves smoothly until the final moment and then slams often needs a slower latch speed. If it nearly closes but does not catch the latch, it may need a slightly faster latch speed or more closing force.
Backcheck cushions the door as it is opened, helping prevent the door from being thrown into a wall, stop, or nearby person. It is not an opening-speed control. Over-adjusting backcheck can make a door feel like it hits an abrupt wall while opening.
Delayed action holds the door open longer through part of its closing cycle before it resumes normal closing speed. This feature can help at certain accessible entries, but it must be used correctly and should not replace a properly designed automatic or accessible opening system.
Spring power affects the closer’s overall closing force. This adjustment may be a nut, screw, or separate mechanism rather than a hydraulic valve. It is often factory-set based on door size, weight, wind exposure, and hardware. Do not change spring power as the first response to a slamming door.

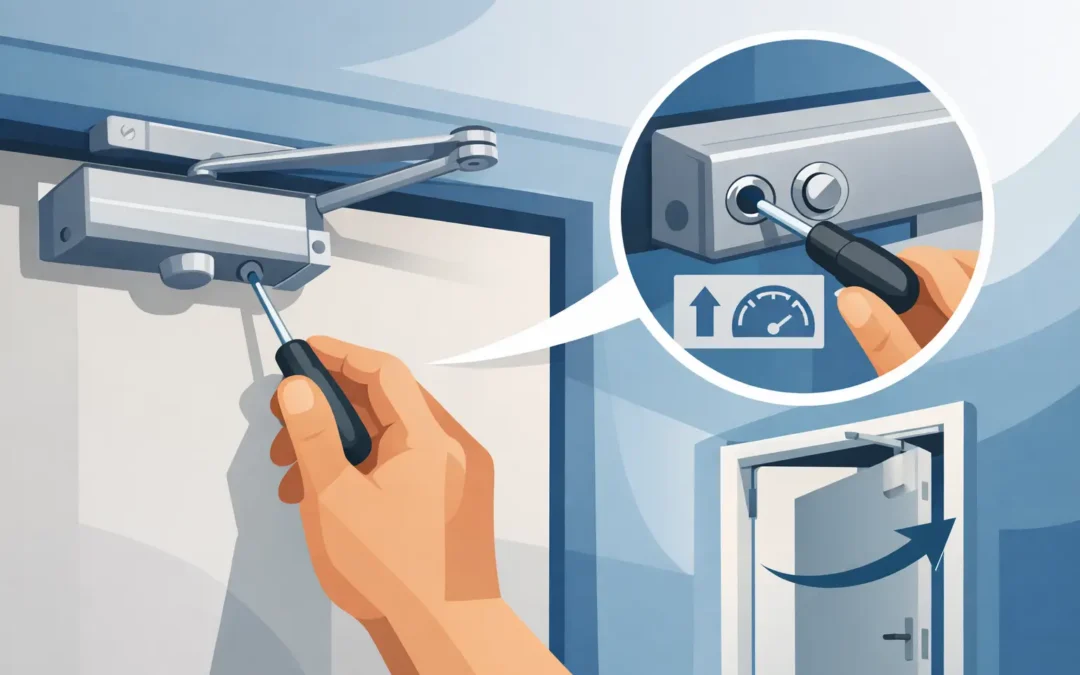

Door Closer Adjustment Instructions, Step by Step
Begin with the smallest possible adjustment. Turn only one valve at a time, then test the door. On many closers, turning a speed valve clockwise slows the door and turning it counterclockwise speeds it up. However, confirm this on the closer body or manufacturer’s documentation because designs differ.
- Open the door fully and let it close naturally. Observe its speed from the open position through latching.
- Locate the sweep and latch valves. They are usually recessed screws on one end or face of the closer body. Labels may be stamped into the casting or shown under the closer cover.
- Adjust sweep speed first if the door is too fast or too slow through most of its closing travel. Turn the valve no more than one-eighth of a turn. Test the door at least three times after each change.
- Adjust latch speed next. If the door slams only at the end, make a small slowing adjustment. If it reaches the frame but will not latch, make a very small speeding adjustment and test again.
- Check the door from several opening positions, not just fully open. A properly adjusted closer should control the door consistently and allow the latch to engage every time.
- Reinstall the closer cover, if equipped, after adjustment. Covers protect the closer from dirt, damage, and unauthorized changes.
Avoid turning a valve more than a quarter turn at a time. It is easy to lose track of the original setting, and large changes can produce poor results quickly. Never remove an adjustment screw. Doing so can release hydraulic fluid, damage the closer, and leave the door unable to close properly.
When a Faster or Slower Door Is Not the Answer
A closer that will not perform consistently may have a mechanical problem. Hydraulic fluid on the closer body, arm, door, or floor is a strong sign of a failed seal. A leaking closer generally needs replacement rather than adjustment.
Arm problems are also common. A loose arm shoe, worn connecting pin, bent arm, or incorrect arm position can prevent the closer from developing the right closing force. On parallel-arm installations, especially common at commercial openings, the arm geometry must be set correctly. Tightening random fasteners can make the problem worse or damage the door and frame.
Seasonal conditions matter as well. Cold Northern Illinois and Southern Wisconsin winters can thicken hydraulic fluid and change closer performance. A closer that works well in mild weather may close slowly in extreme cold. Before increasing spring power or dramatically changing valve settings, confirm that the closer is rated for the environment and that the opening is not being affected by wind, stack pressure, or building HVAC pressure.
If an exterior door is pulled open by wind or forced shut by pressure differences, adjustment may only mask the underlying issue. Weather seals, vestibules, latching hardware, and door alignment may all need attention.
Fire Doors, Accessibility, and High-Traffic Openings
Commercial door closers do real safety work. Fire doors must self-close and positively latch so they can help contain smoke and fire. Do not block, wedge, or hold open a fire door unless it has an approved hold-open device connected to the appropriate fire alarm or release system.
Accessibility is equally important. A door that requires excessive opening force can create a barrier for visitors, residents, employees, and customers. Yet reducing closer power too far can prevent reliable latching. The right balance depends on the door’s size, weight, location, hardware, and applicable code requirements.
High-use openings deserve regular inspection. Facility teams should check closer mounting screws, arm fasteners, hinge condition, latching performance, and signs of oil leakage. A quick check during routine maintenance can prevent damaged hardware, unsecured doors, and avoidable emergency repairs.
When to Call a Door Professional
Call for professional service when the closer leaks, the door will not latch after careful speed adjustments, the arm is loose or damaged, or the opening is fire-rated, code-sensitive, or unusually heavy. Professional service is also the right choice when a closer repeatedly goes out of adjustment. The issue may be worn hinges, improper installation, a failing closer, or an alignment problem elsewhere in the opening.
For facility managers, one qualified door provider can diagnose the complete opening instead of replacing parts one at a time. Barcol Door Company services commercial doors, frames, closers, panic hardware, fire-rated openings, and related hardware throughout Northern Illinois and Southern Wisconsin.
A properly adjusted door closer should be almost unremarkable: easy enough to open, controlled through the swing, quiet at closing, and securely latched every time. If yours cannot meet all four of those expectations, give the opening the attention it deserves before a minor inconvenience becomes a security, safety, or code issue.
